Award Winning QC Deck Digital Video Recorder/Player Now Shipping
nNovia’s QC Deck has received the Event Video Product Innovation Award and has been
listed number 2 as the NAB 2006: 12 New Products to Watch.
The QC Deck, the second generation in the Quick Capture A2D product line, features a
removable hard disc drive cartridge and HDV recording via the 1394 connection. In addition to all the features of the Quick Capture A2D, the QC Deck has added the following special features:
- Selectable (After Recording) File System: Fat32 or NTFS.
- More File Types: AVI, MOV, MXF (OP1A), M2T (Digital mode only).
- 8 second pre-record.
- Timelapse Recording: Preset increments or Trigger.
- Editable Time & Date Recording.
- Transactional File System.
- Auto Play & Auto Record.
- Supports Different Volume ID's: Mount multiple units at once.
- Removable Cartridge can be connected directly to computer: optional USB or 1394
cable.
- Tally Light: Record Indicator and Low Capacity Drive Indicator.
Model Numbers, Descriptions & Prices:
QCD100K1 QC Deck bundled with 100GB Media Cartridge (7.5 hours of HDV and DV recording), Firewire Media Cartridge Cable to computer editor, Analog Breakout Cable, AC
Adapter/Battery Charger, Battery, Belt-bag
QC-MPSS40 40GB Media Cartridge (3 hours of HDV and DV Recording) for the QC Deck.
QC-MPSS60 60GB Media Cartridge (4.5 hours of HDV and DV Recording) for the QC Deck
QC-MPSS80 80GB Media Cartridge (6 hours of HDV and DV Recording) for the QC Deck
QC-MPSS100 100GB Media Cartridge (7.5 hours of HDV and DV Recording) for the QC Deck
QC-MPSS120 120GB Media Cartridge (9 hours of HDV and DV Recording) for the QC Deck

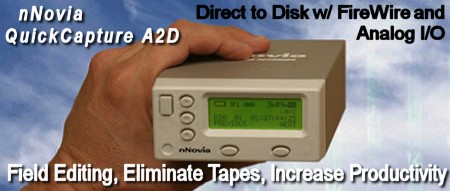

QuickCapture A2D
Record Edit-Ready files straight to hard drive, with digital and analog capabilities.
QuickCapture A2D has integrated media conversion capability that allows the user to record analog and digital video content directly to QuickCapture A2D without further capturing or
rendering! QuickCapture A2D can also playback and pass-through video content on analog monitors!
The QuickCapture A2D comes complete with bag, battery, power adaptor, and analog
breakout cable. QuickCapture A2D models feature IEEE1394 6 Pin DV Input/Output, 4-Pin SVHS, BNC Composite Video, RCA unbalanced audio analog inputs and outputs. NTSC and
PAL selectable. Dimensions: 5.9" x 4.0" x 1.825", Weight: 14 oz.
Model Numbers, Descriptions & Prices:
QC40AN - QuickCapture A2D 40GB/3 Hours of Audio/Video Storage
QC60AN - QuickCapture A2D 60GB/4.5 Hours of Audio/Video Storage
QC80AN - QuickCapture A2D 80GB/6 Hours of Audio/Video Storage
QC100AN - QuickCapture A2D 100GB/7.5 Hours of Audio/Video Storage
Also Available with Anton Bauer & V-Mount (Sony/IDX) camera/battery mounting systems.
 QuickCapture
‘Shoot Non-Linear’ by organizing your video into
selectable bins while you shoot! Quick Capture is a portable hard drive video recorder that turns your cameraâs video into edit-ready files as you shoot.
With 99 bins to choose from, Quick Capture helps you organize while you shoot. Simply drag and drop the files from the Quick Capture to your local drive and
eliminate the capturing process! You can even go tapeless! NTSC and PAL selectable.
Model Numbers, Descriptions & Prices:
QC40N - QuickCapture 40GB/3 Hours of Audio/Video Storage
QC60N - QuickCapture 60GB/4.5 Hours of Audio/Video Storage
QC80N - QuickCapture 80GB/6 Hours of Audio/Video Storage
QC100N - QuickCapture 100GB/7.5 Hours of Audio/Video Storage
Also Available with Anton Bauer & V-Mount (Sony/IDX) camera/battery mounting systems.

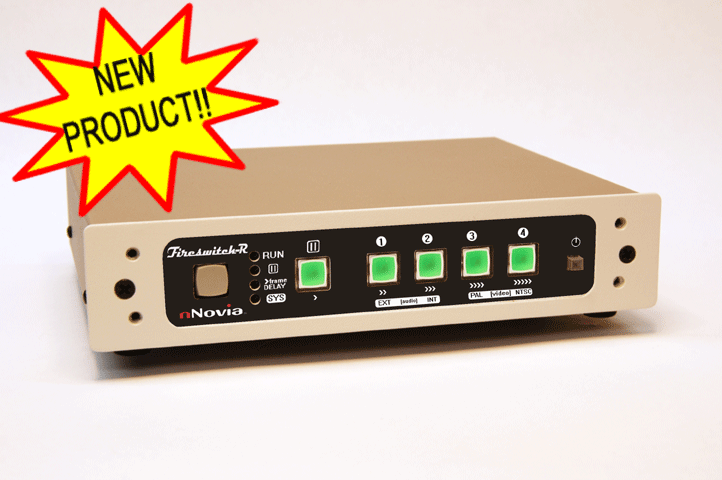

Fireswitch 4x1 DV Distribution Amplifier
Switch non-synchronized DV sources glitch-free!!
4 single port DV inputs, 1 DV output w/ 2 ports Output audio choice: insert EXTERNAL AUDIO into output stream!
Adjustable AUDIO DELAY, 1-5 frames
GRAB & STORE a single frame from any input to display glitchlessly within video switching
Switch inputs REMOTELY through GPI contact closures
Optional composite video of output stream
Power available at inputs (can power repeaters)
Compatible w/ NTSC or PAL
Model Numbers, Descriptions & Prices:
FS4X1R - FireSwitch-R 4x1 1394 Switcher with RS232, GPI, frame-grab and external audio.
FS4X1M - FireSwitch-R with Composite Monitor Option.
|
